AGZL-45 Full automatic Rebar Thread Cutting Machine

High tensile strength. It can meet standards: JGJ107, ACI318, BS8110,  DIN1045 and UBC1997 etc.



Inquire Now

Next Product





    Technical Parameter:



    Model

    AGZL-45 Full-automatic

    Dia. of Threading Rebar

    M16-M45mm

    Rotation Speed

    32r/min

    Reverse Rotation Speed

    46r/min

    Voltage

    380V 50Hz

    Motor Power

    3.0 kw

    Oil Pump Power

    2.2 kw

    Net Weight

    950kgs

    Dimension

    1325*850*1070mm

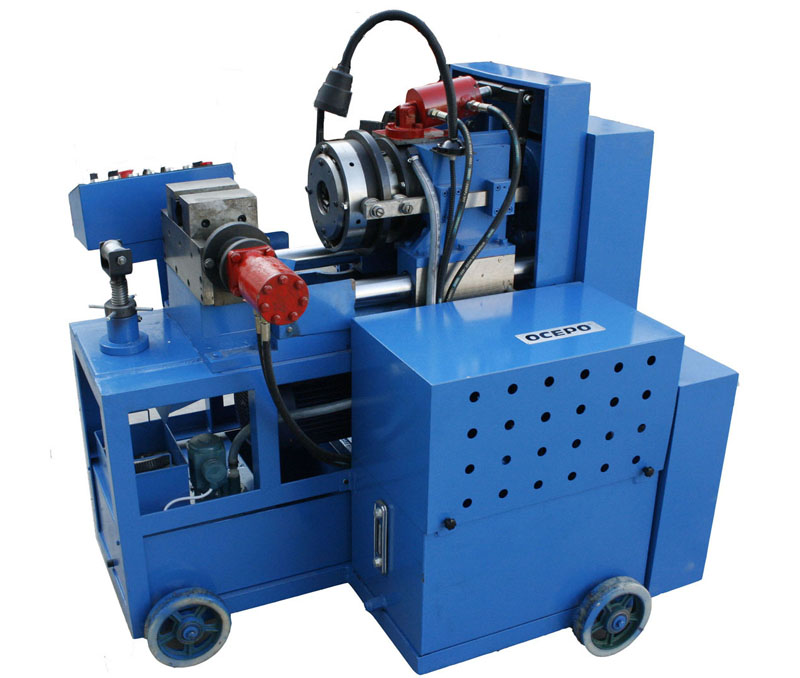

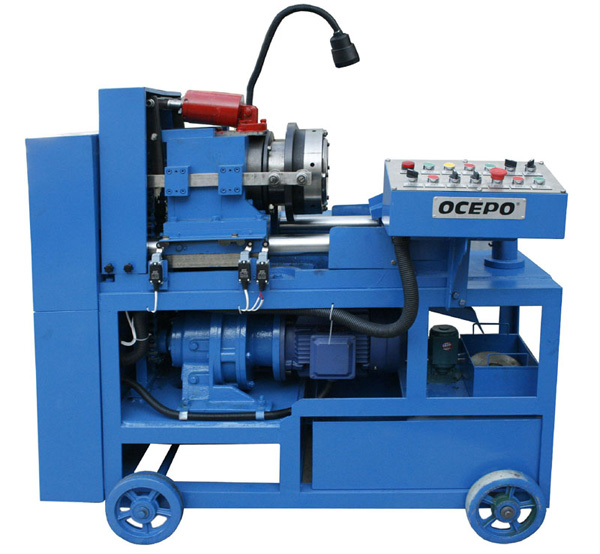

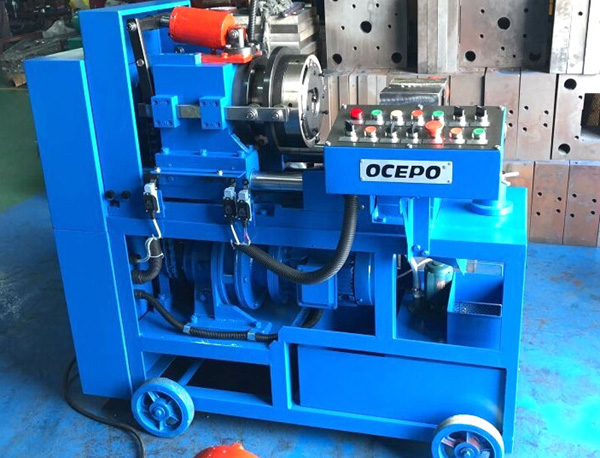

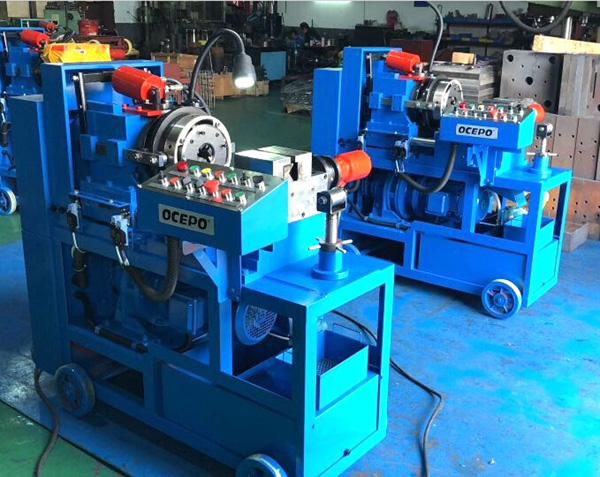

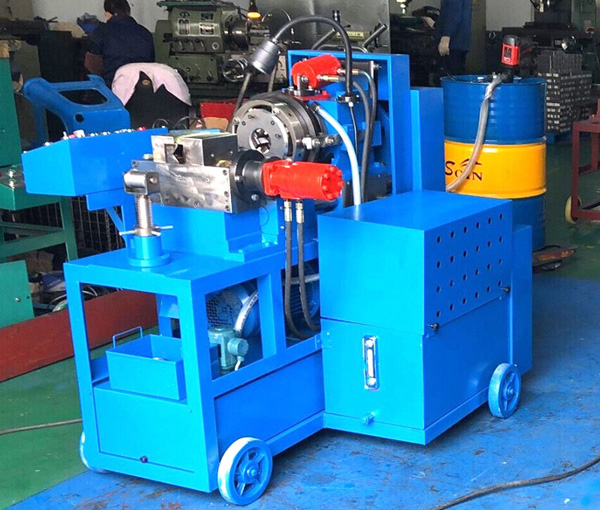

    Photos of Rebar Thread Cutting Machine:

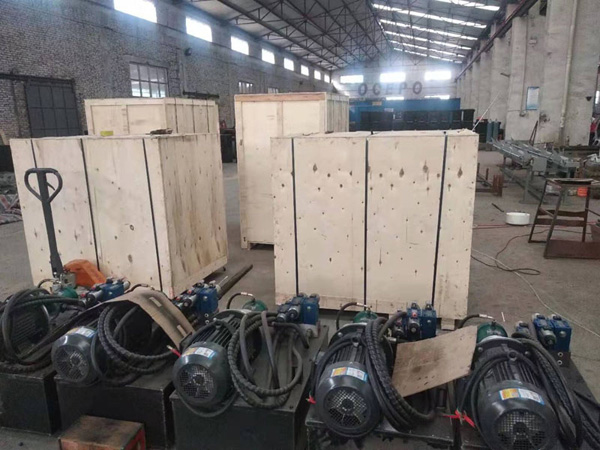

     Packing:






    The machine is used to cut thread on forged rebar end.



    1. High tensile strength. It can meet standards: JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

    2. Very easy to operate, just need to push one button, and then the machine will work automatically.

    3. Need only one minute to cut thread on one piece of rebar end.

    4. Environment-friendly, safe, no environment and weather restrictions.

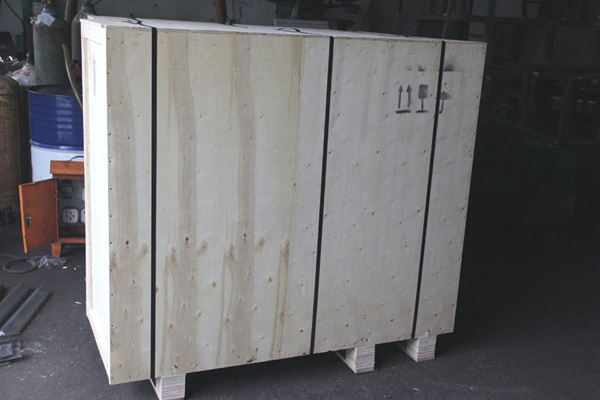

    Plywood Case
