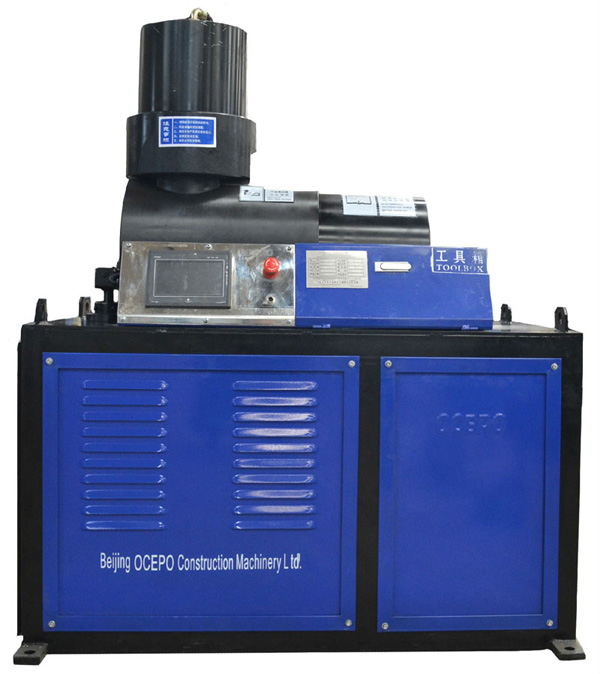

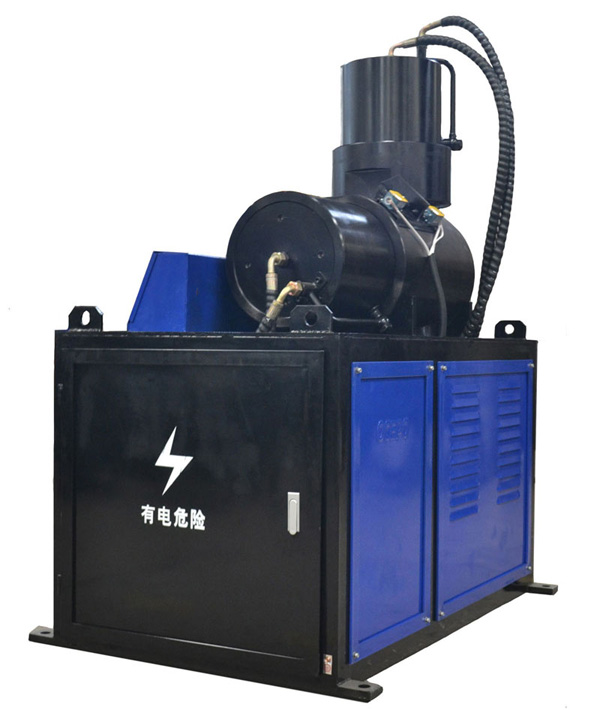

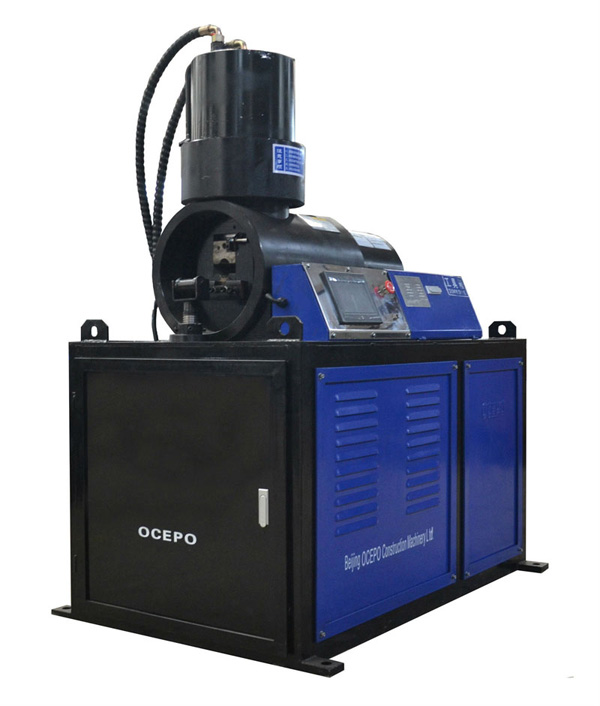

AGD-40/45 CNC Full Auto Double-Cylinder Rebar Upset Forging Machine

It is CNC type, and very easy to operate. It can meet standards: JGJ107, ACI318, BS8110,  DIN1045 and UBC1997 etc.

Inquire Now

Next Product





    Technical Parameter:



    ModelAGD-40 CNCAGD-45 CNC
    CapacityФ16mm—Ф40mmФ16mm—Ф43mm
    Motor Power7.5KW11KW
    Voltage380V   50Hz-3Phase380V   50Hz-3Phase
    Oil Pump 31.5MPa31.5MPa
    Hydraulic Oil46#68#
    Oil Tank Capacity 115L 130L
    Dimension1250x850x1700mm1350x950x1700mm
    Weight1200kg1550kg

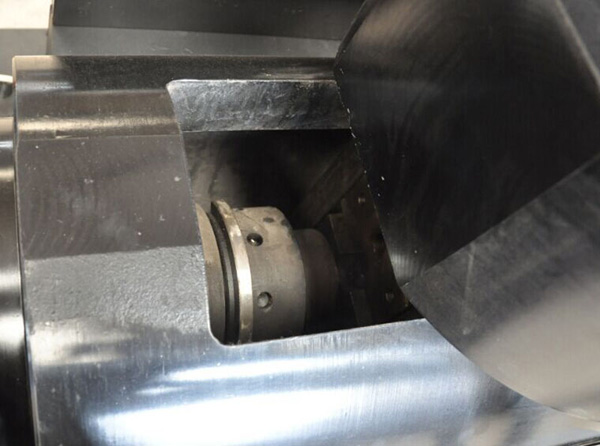

    Details:











    Packing:

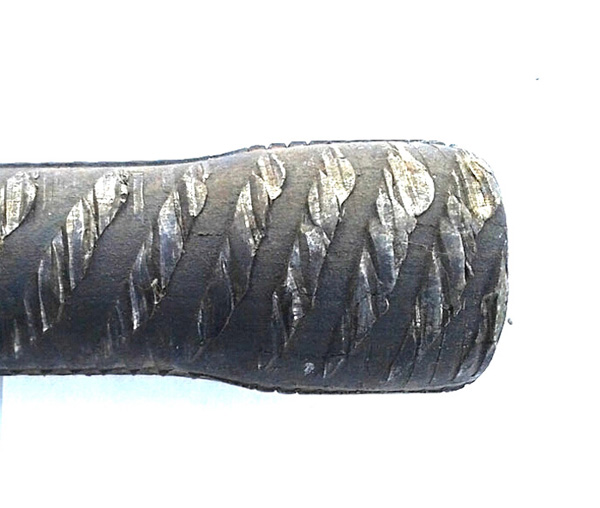

    The machine is used to upset forging rebar end, and suitable for rebar diameter 16-40mm automatically.

      Advantage:

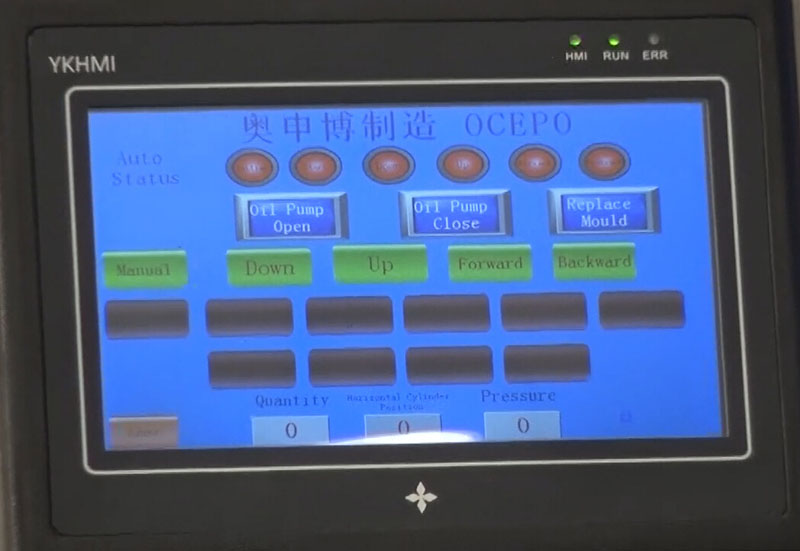

      1. LCD control, very easy to operate.

      2.With double double-cylinder, speed is fast.

      3. High tensile strength. It can meet standards: JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

      4. Easy to operate. Need only one minute to upset forging one piece of rebar end.

      5. Widely used. Be able to process rebar diameter 16-32mm.

      6. Environment-friendly, safe, no environment and weather restrictions.





    Plywood Case
