AGD-45/50 Full auto double-cylinder rebar upset forging machine
It is double-cylinder type. It can meet standards: JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
Technical Parameter:
| Model | AGD-45 | AGD-50 |
| Capacity | Ф16mm—Ф40mm | Ф16mm—Ф43mm |
| Motor Power | 7.5KW | 11KW |
| Voltage | 380V 50Hz-3Phase | 380V 50Hz-3Phase |
| Oil Pump | 31.5MPa | 31.5MPa |
| Hydraulic Oil | 46# | 68# |
| Oil Tank Capacity | 115L | 130L |
| Dimension | 1250x850x1700mm | 1350x950x1700mm |
| Weight | 1200kg | 1550kg |

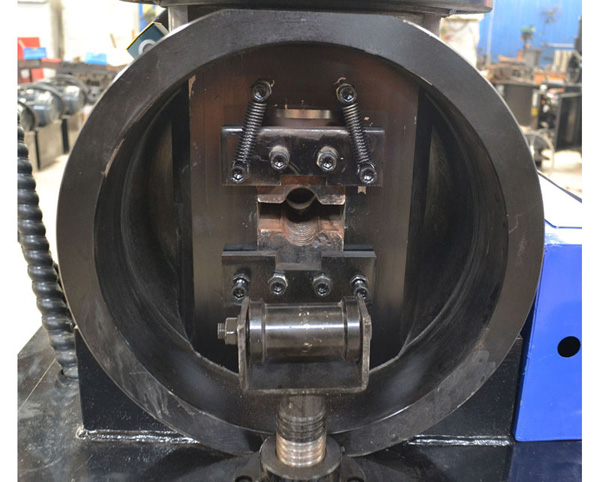

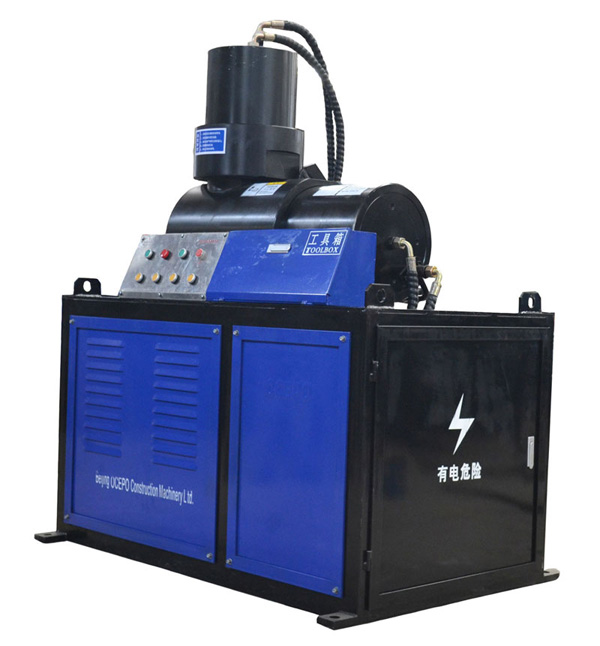

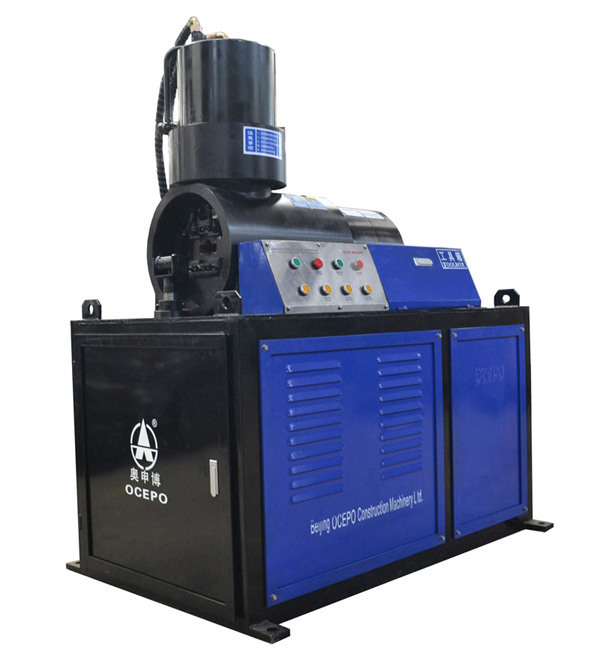

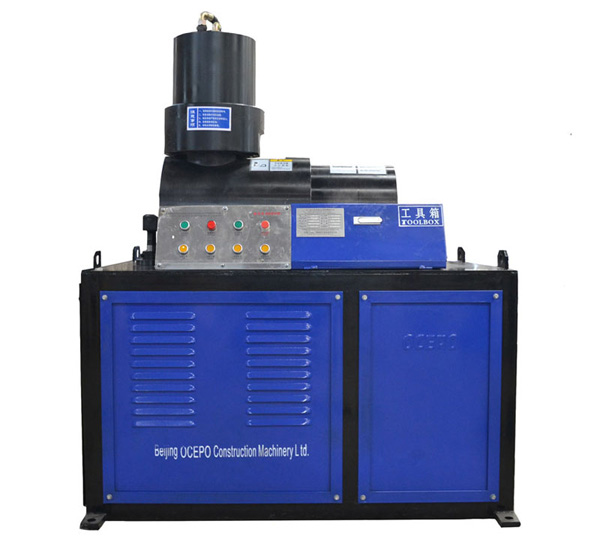

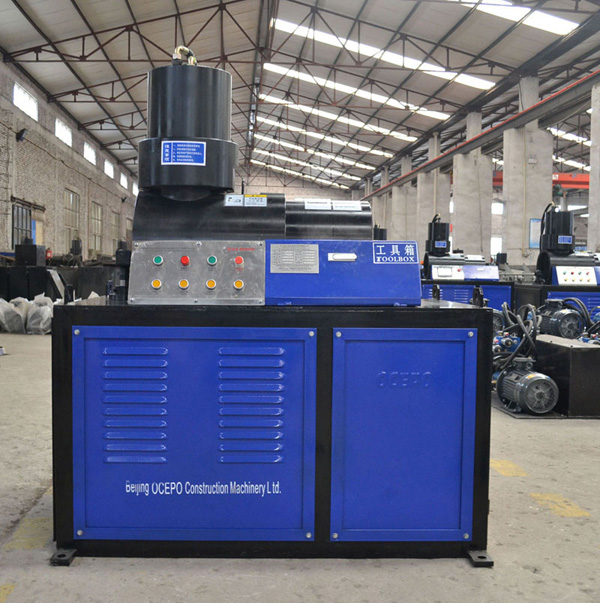

Photos of Double Cylinder Rebar Upsetting Machine：
Packing：

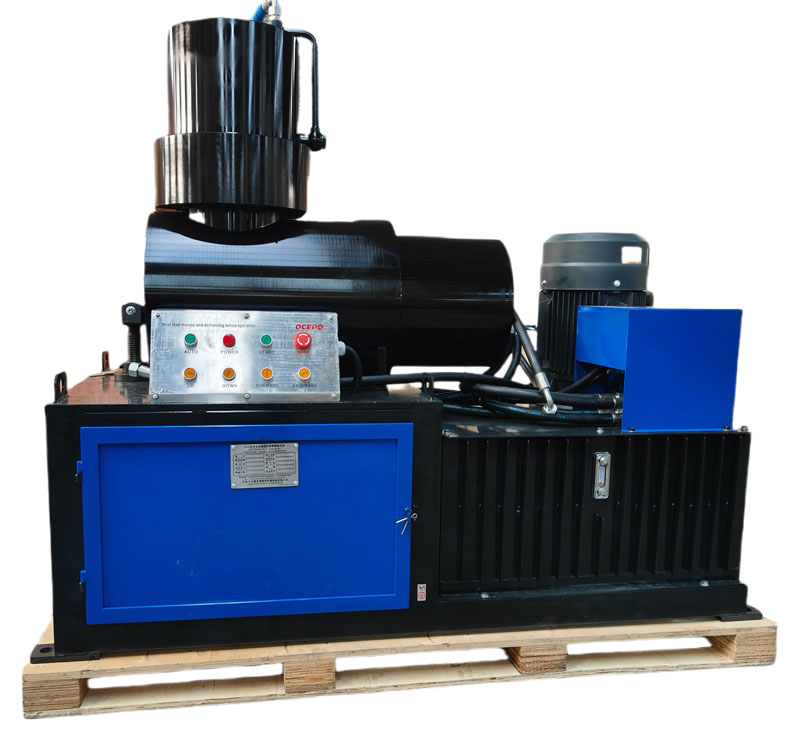

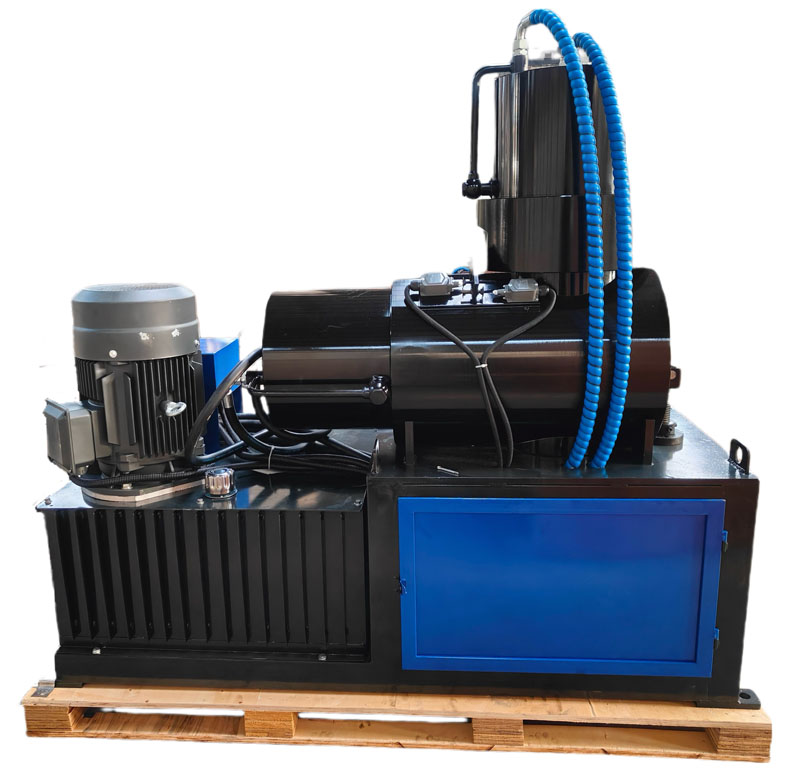

New Design:

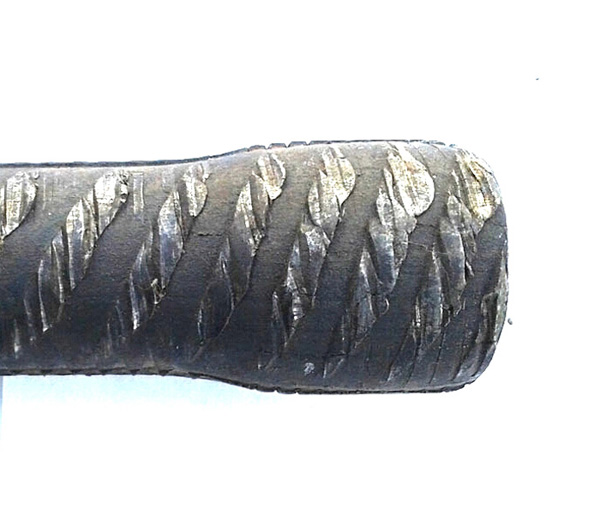

The machine is used to upset forging rebar end, and suitable for rebar diameter 16-32mm automatically.
Advantage:
1. With double double-cylinder, speed is fast.
2. High tensile strength. It can meet standards: JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
3. Easy to operate. Need only one minute to upset forging one piece of rebar end.
4. Widely used. Be able to process rebar diameter 16-40mm.
5. Environment-friendly, safe, no environment and weather restrictions.

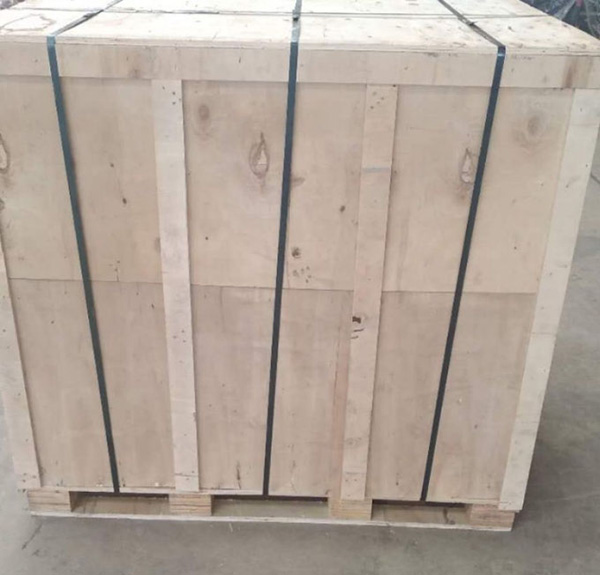

Plywood Case
Product Name: AGD-45/50 Full auto double-cylinder rebar upset forging machine
