AGS-40Z Auto Rebar Thread Rolling Machine

It is an auto rebar thread rolling machine by air pressure.

Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.



Inquire Now

Next Product





    Technical Parameter:



    ModelAGS-40Z
    Threading Roller Diameter78.2   mm70   mm59   mm
    Thread Pitch2.5   mm3   mm3   mm
    Rebar Diameter(mm)Φ16-Φ22Φ25-Φ32Φ36-Φ40
    Main Motor Power5.5 kw
    Working Current380V 50HZ
    Spindle Speed62-75 r/min
    Max. Thread LengthRight thread: 100 mm
    Net Weight420 kg

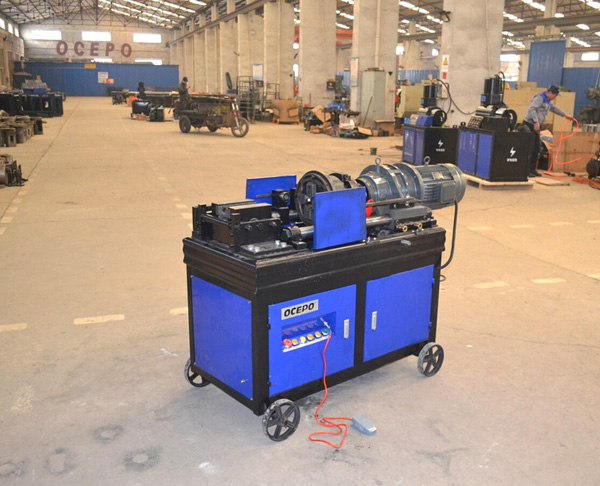

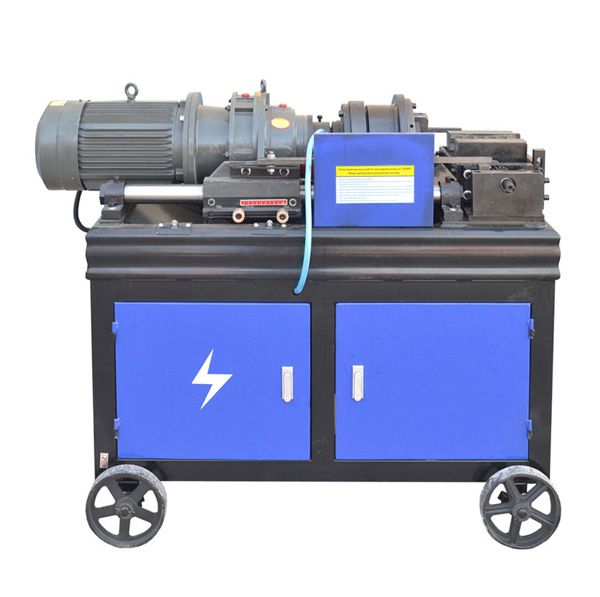

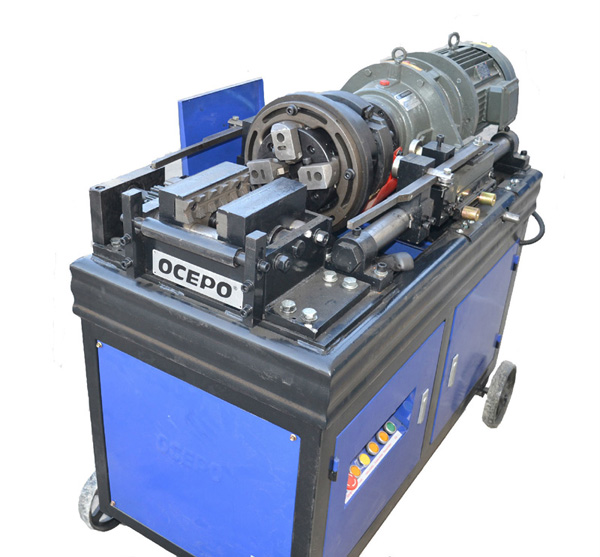

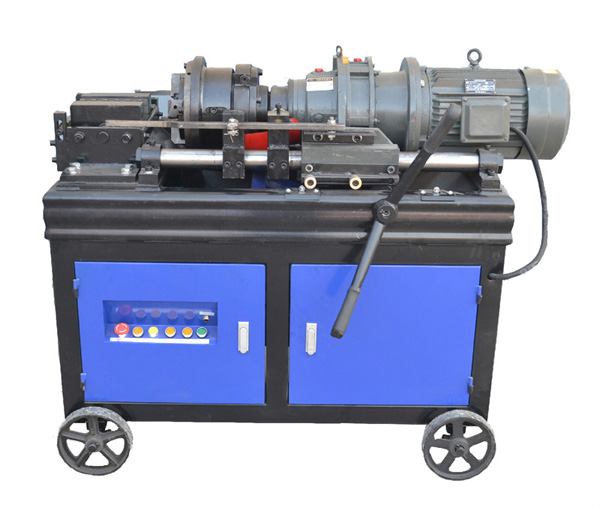

    Photos:

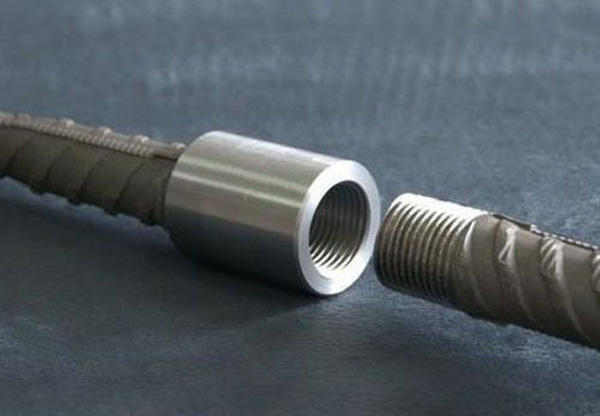

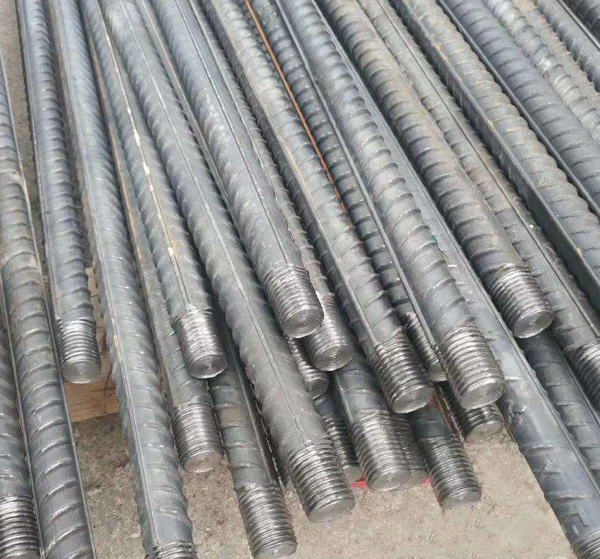

    The machine is used to peel ribs and roll threads on rebar end.






    1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

    2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.

    3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.

    4. Widely used. Be able to process rebar diameter 16-40mm

    5. Environment-friendly, safe, no environment and weather restrictions.

    6. Economic, low investment for the equipment


    Plywood Case
