AGS-40D/50D Rebar Thread Rolling Machine

Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

Inquire Now

Next Product





    Technical Parameter:



    Model

    AGS-40D

    Threading Roller Diameter

    78.2 mm

    70 mm

    59 mm

    Thread Pitch

    2.5 mm

    3 mm

    3 mm

    Rebar Diameter(mm)

    Φ16-Φ22

    Φ25-Φ32

    Φ36-Φ40

    Main Motor Power

    7.5 kw

    Working Current

    380V 50HZ

    Spindle Speed

    62-75 r/min

    Max. Thread Length

    Right thread: 100 mm

    Net Weight

    450 kg

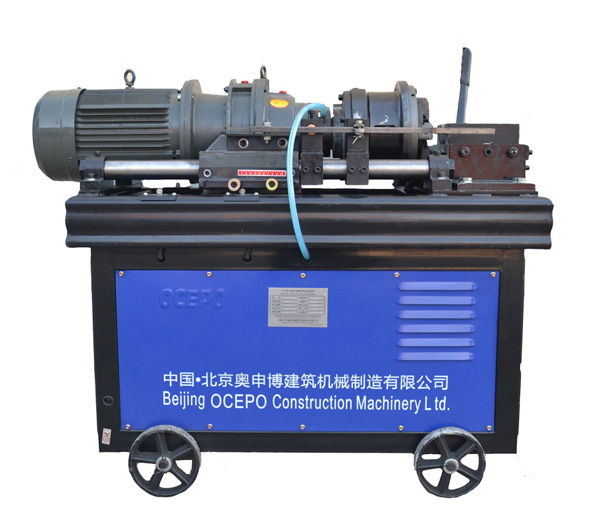

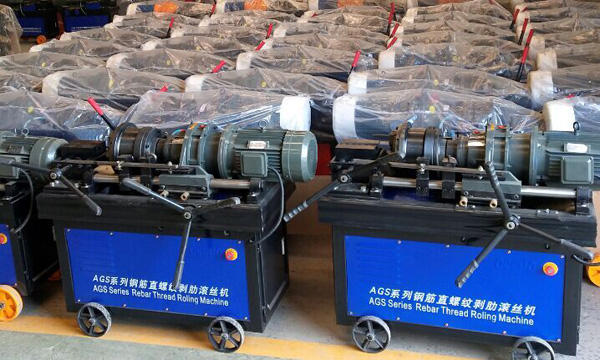

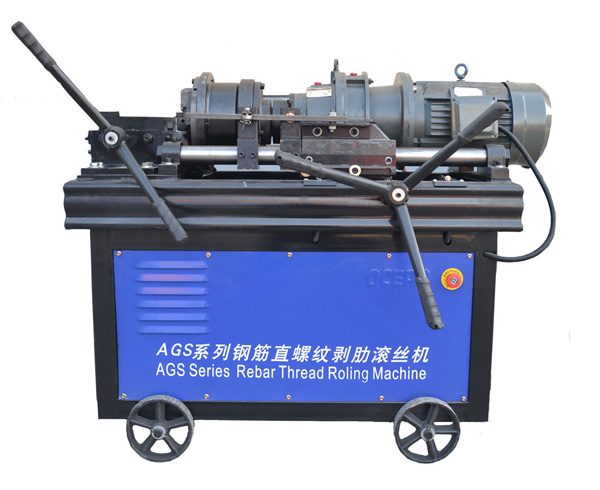

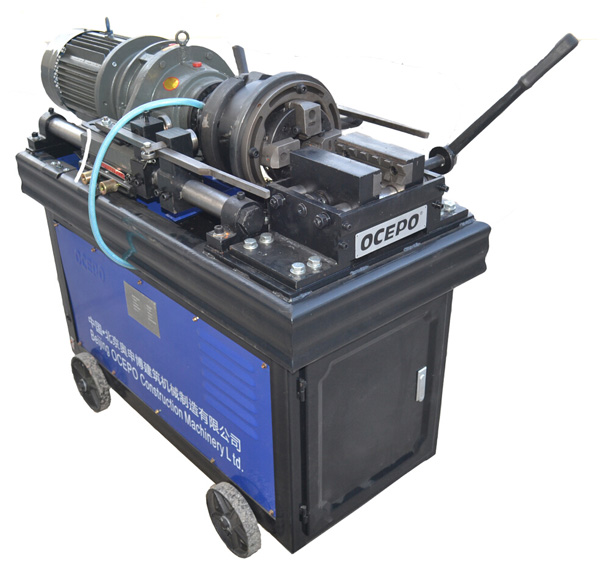

    Photos of AGS-40D Rebar Thread Rolling Machine:





















    Packing:

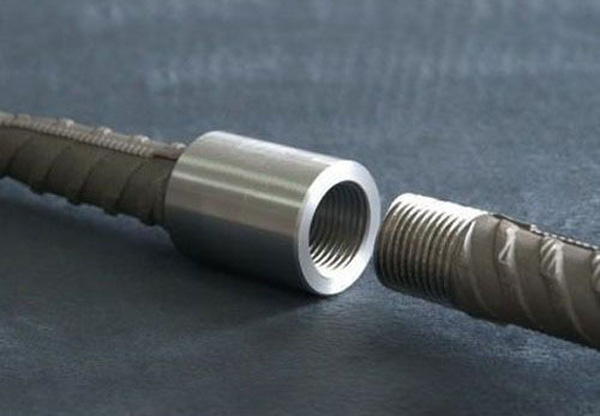

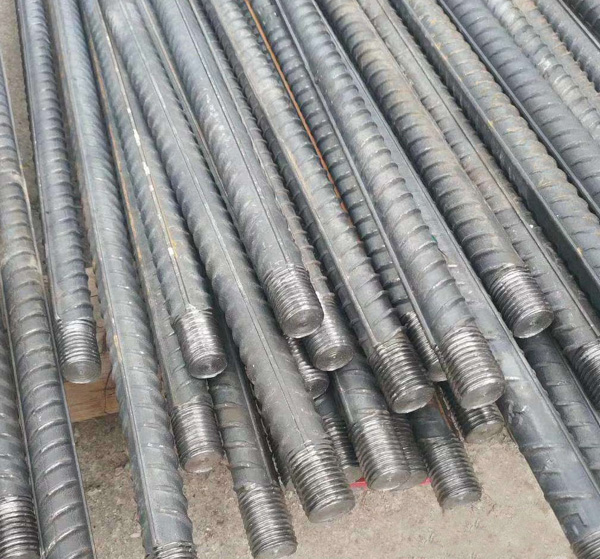

    The machine is used to peel ribs and roll threads on rebar end.








    1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

    2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.

    3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.

    4. Widely used. Be able to process rebar diameter 16-40mm

    5. Environment-friendly, safe, no environment and weather restrictions.

    6. Economic, low investment for the equipment


    Packing: Plywood Case
