Home > Products> Rebar Coupler> Parallel Thread Rebar Coupler

Right Thread Rebar Coupler

High Tensile & yield strength, reach JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.





Inquire Now

Next Product





    Technical Parameter:



     SizeSpecificationNet Weight (kg)Thread Pitch (mm)Thread   Angle
    Outer Diameter(mm)Length (mm)
    Φ16Φ24.0430.09362.575°/ 60°
    Φ18Φ27.0470.12862.575°/ 60°
    Φ20Φ31.0520.19382.575°/ 60°
    Φ22Φ33.0570.22962.575°/ 60°
    Φ25Φ37.0630.3106375°/ 60°
    Φ28Φ41.0670.4024375°/ 60°
    Φ32Φ47.0770.5979375°/ 60°
    Φ36Φ54.0850.8854375°/ 60°
    Φ40Φ59.0951.15375°/ 60°



    Factory:











    Tensile Test:





    Packing:




    Related Products:





     It is used to connect threaded rebar.



     Connection Method:





    1. Use solid 45# carbon steel as raw material

    2. Splice rebar of HRB335, HRB400 & HRB500 etc.

    3. High Tensile & yield strength, reach JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

    4. Easy operation & environmentally friendly.

    5. Could be used in the every orientation connection of reinforcing bars with same or different Diameter.

    6. Good low temperature resistance, and could pass the -40 degree low temperature test

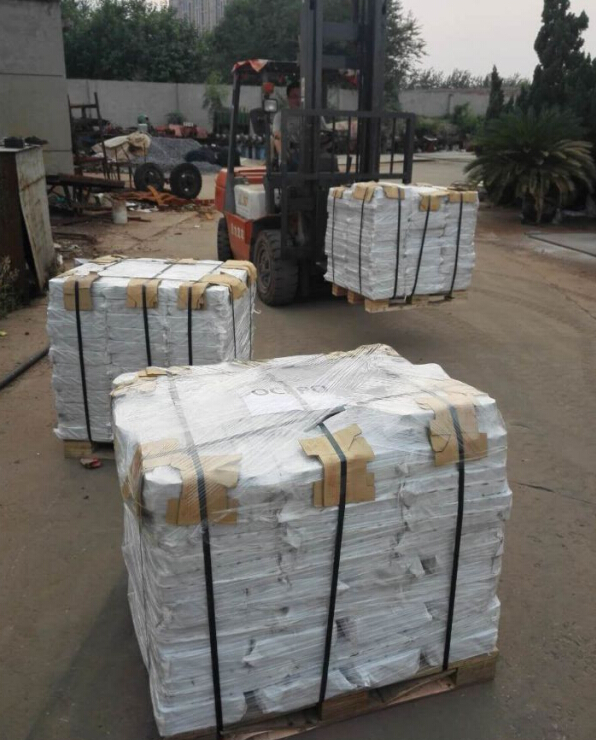

     Woven bag firstly, and then into pallet
